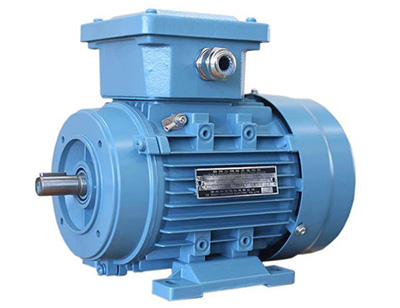

Y-H系列船用三相異步電動機（鋁質機殼：機座號50～132）
Y-H Series Three phase Marine Asynchronous Motor(Aluminum enclosure:Frame Size50~132)
Y-H系列是全封閉，自扇冷鼠籠式船用三相異步電動機，廣泛用于船舶上作驅動之用如中小型機床、風機等機械的動力裝置。該系列電動機性能優良、節能省電、結構可靠、通用性強。
Y-H series motors are totally-enclosed, fan cooled three phase squirrel caged type. the motors are suitable for driving various machines on ships such as small size machine tool、fan and etc. the motors has advantage of high performance、energy-saving 、reliable structure and universally working .
工作環境條件(Operating Conditions)
海拔≤1000m
Altitude should be lower than 1000m above sea level
環境溫度： 0~+45℃
Ambient temperature 0~+45℃
空氣相對濕度 ≤95%
Relative humidity should be less than 95%.
傾斜: ±30°
Inclination ：±30°
搖擺: ±22.5°
Swing：±22.5°
有鹽霧、油霧、霉菌及海水的影響
Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.
有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響
Influenced by shock and vibration come from ships and offshore installation.
外殼：鑄造鋁
Enclosure: casting aluminum

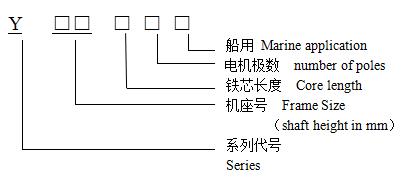

型號說明(Type Designation)
軸承（Bearing）
|
機座號
|
極數
|
軸承規格
|
軸承尺寸內徑*外徑*寬度
|
|
50
|
2、4
|
6200-2RS
|
10*30*9
|
|
56
|
2、4
|
6200-2RS
|
10*30*9
|
|
63
|
2、4
|
6201-2RS
|
12*32*10
|
|
71
|
2、4、6
|
6202-2RS
|
15*35*11
|
|
80
|
2、4、6
|
6204-2RS
|
20*47*14
|
|
90
|
2、4、6
|
6205-2RS
|
25*52*15
|
|
100
|
2、4、6
|
6206-2RS
|
30*62*16
|
|
112
|
2、4、6
|
6206-2RS
|
30*62*16
|
|
132
|
2、4、6、8
|
6208-2RS
|
40*80*18
|
技術數據(Technical Data)
型號
Type
|
功率
Output (kW)
|
電流
Rated Current(A)
|
轉速
Rated Speed r/min
|
效率
Effi. %
|
功率因數
COSφ
|
起動電流/額定電流
Locked-rotor current VS Rated current Ik/In
|
起動轉矩/額定轉矩
Locked-rotor torque VS Rated torque Tk/Tn
|
zui大轉矩/額定轉矩
Breakdown torque VS Rated torque Tm/Tn
|
380V
50Hz
|
440V
60Hz
|
380V
50Hz
|
440V
60Hz
|
380V
50Hz
|
440V
60Hz
|
380V
50Hz
|
440V
60Hz
|
|
Y501-2-H
|
0.04
|
0.17
|
0.15
|
2800
|
3290
|
55
|
55
|
0.65
|
0.65
|
6
|
2.3
|
2.4
|
|
Y502-2-H
|
0.06
|
0.23
|
0.2
|
2800
|
3290
|
60
|
60
|
0.66
|
0.66
|
|
Y501-4-H
|
0.025
|
0.17
|
0.15
|
1400
|
1640
|
42
|
42
|
0.53
|
0.53
|
|
Y502-4-H
|
0.04
|
0.23
|
0.2
|
1400
|
1640
|
50
|
50
|
0.54
|
0.54
|
|
Y561-2-H
|
0.09
|
0.32
|
0.28
|
2800
|
3290
|
62
|
62
|
0.68
|
0.68
|
|
Y562-2-H
|
0.12
|
0.38
|
0.33
|
2800
|
3290
|
67
|
67
|
0.71
|
0.71
|
|
Y561-4-H
|
0.06
|
0.28
|
0.24
|
1400
|
1640
|
56
|
56
|
0.58
|
0.58
|
|
Y562-4-H
|
0.09
|
0.39
|
0.34
|
1400
|
1640
|
58
|
58
|
0.61
|
0.61
|
|
Y631-2-H
|
0.18
|
0.52
|
0.45
|
2800
|
3300
|
69
|
69
|
0.75
|
0.75
|
2.2
|
|
Y632-2-H
|
0.25
|
0.69
|
0.6
|
2800
|
3300
|
72
|
72
|
0.78
|
0.78
|
|
Y631-4-H
|
0.12
|
0.44
|
0.38
|
1400
|
1650
|
60
|
60
|
0.63
|
0.63
|
|
Y632-4-H
|
0.18
|
0.62
|
0.54
|
1400
|
1650
|
64
|
64
|
0.66
|
0.66
|
|
Y711-2-H
|
0.37
|
0.99
|
0.87
|
2800
|
3380
|
73.5
|
73.5
|
0.8
|
0.8
|
|
Y712-2-H
|
0.55
|
1.38
|
1.2
|
2800
|
3380
|
75.5
|
75.5
|
0.82
|
0.82
|
|
Y711-4-H
|
0.25
|
0.78
|
0.67
|
1400
|
1660
|
67
|
67
|
0.68
|
0.68
|
|
Y712-4-H
|
0.37
|
1.12
|
0.97
|
1400
|
1660
|
69.5
|
69.5
|
0.72
|
0.72
|
|
Y711-6-H
|
0.18
|
0.74
|
0.64
|
880
|
1090
|
56
|
56
|
0.66
|
0.66
|
4
|
1.9
|
2
|
|
Y712-6-H
|
0.25
|
0.95
|
0.82
|
880
|
1090
|
59
|
59
|
0.68
|
0.68
|
|
Y80M1-2-H
|
0.75
|
1.8
|
1.6
|
2820
|
3460
|
75
|
76.5
|
0.84
|
0.82
|
6.1
|
1.9
|
2.1
|
|
Y80M2-2-H
|
1.1
|
2.6
|
2.2
|
2820
|
3460
|
76.5
|
77.5
|
0.85
|
0.85
|
7
|
|
Y80M1-4-H
|
0.55
|
1.5
|
1.4
|
1390
|
1710
|
72.5
|
74
|
0.75
|
0.71
|
5.2
|
2
|
|
Y80M2-4-H
|
0.75
|
2.1
|
1.8
|
1390
|
1710
|
74
|
76
|
0.75
|
0.72
|
6
|
1.9
|
|
Y80M1-6-H
|
0.37
|
1.31
|
1.13
|
890
|
1110
|
63
|
63
|
0.7
|
0.7
|
4
|
|
Y80M2-6-H
|
0.55
|
1.7
|
1.47
|
890
|
1110
|
66
|
66
|
0.72
|
0.72
|
|
Y90S-2-H
|
1.5
|
3.5
|
3.1
|
2840
|
3470
|
79.5
|
80
|
0.82
|
0.85
|
7
|
|
Y90L-2-H
|
2.2
|
4.9
|
4.3
|
2840
|
3470
|
82.5
|
83.5
|
0.83
|
0.8
|
|
Y90S-4-H
|
1.1
|
2.7
|
2.4
|
1400
|
1710
|
78
|
79
|
0.78
|
0.75
|
6
|
|
Y90L-4-H
|
1.5
|
3.6
|
3.2
|
1400
|
1710
|
79
|
80.5
|
0.8
|
0.77
|
|
Y90S-6-H
|
0.75
|
2.2
|
2
|
910
|
1130
|
72.5
|
74
|
0.7
|
0.67
|
5.5
|
1.8
|
2
|
|
Y90L-6-H
|
1.1
|
3.2
|
2.9
|
910
|
1130
|
72.5
|
74
|
0.71
|
0.68
|
|
Y100L-2-H
|
3
|
6.2
|
5.4
|
2880
|
3490
|
84
|
84
|
0.87
|
0.86
|
7.5
|
1.9
|
2.1
|
|
Y100L1-4-H
|
2.2
|
5
|
4.5
|
1420
|
1730
|
81.5
|
82.5
|
0.81
|
0.78
|
7
|
|
Y100L2-4-H
|
3
|
6.8
|
5.9
|
1420
|
1730
|
83
|
85
|
0.81
|
0.78
|
|
Y100L-6-H
|
1.5
|
4
|
3.5
|
940
|
1150
|
77.5
|
79.5
|
0.73
|
0.7
|
5.5
|
1.8
|
2
|
|
Y112M-2-H
|
4
|
8.2
|
7.2
|
2890
|
3500
|
86.5
|
87
|
0.86
|
0.84
|
7.5
|
1.9
|
2.1
|
|
Y112M-4-H
|
4
|
8.9
|
7.7
|
1440
|
1750
|
84.5
|
86
|
0.81
|
0.79
|
7
|
|
Y112M-6-H
|
2.2
|
5.8
|
5.2
|
940
|
1150
|
79.5
|
82
|
0.72
|
0.68
|
6.5
|
1.8
|
2
|
|
Y132S1-2-H
|
5.5
|
11
|
9.6
|
2900
|
3520
|
86.5
|
86
|
0.88
|
0.87
|
7.5
|
1.5
|
|
Y132S2-2-H
|
7.5
|
14.6
|
12.9
|
2900
|
3520
|
87.5
|
87
|
0.89
|
0.88
|
|
Y132S-4-H
|
5.5
|
11.7
|
10
|
1440
|
1750
|
86
|
88
|
0.83
|
0.82
|
7
|
1.8
|
|
Y132M-4-H
|
7.5
|
15.4
|
13.2
|
1440
|
1750
|
87
|
88.5
|
0.85
|
0.84
|
|
Y132S-6-H
|
3
|
7.2
|
6.4
|
960
|
1170
|
83.5
|
83.5
|
0.76
|
0.74
|
6.5
|
1.8
|
|
Y132M1-6-H
|
4
|
9.5
|
8.2
|
960
|
1170
|
84
|
86
|
0.76
|
0.74
|
|
Y132M2-6-H
|
5.5
|
12.5
|
10.7
|
960
|
1170
|
86
|
87.5
|
0.78
|
0.77
|
|
Y132S-8-H
|
2.2
|
5.8
|
5.2
|
710
|
860
|
80
|
81
|
0.72
|
0.68
|
6
|
1.7
|
1.9
|
|
Y132M-8-H
|
3
|
7.6
|
6.8
|
710
|
860
|
82.5
|
83.5
|
0.73
|
0.69
|
電動機安裝結構型式（Mounting Arrangement）
B3型 — 機座有底腳、端蓋無凸緣 ；
B3 Type — Frame with foot and endshield without flange;
B35型 — 機座有底腳、端蓋有大凸緣，安裝孔為通孔 ；
B35 Type — Frame with foot and flange with big rabbet and through holes.
B34型 — 機座有底腳、端蓋有小凸緣，安裝孔為絲孔；
B34 Type — Frame with foot and flange with small rabbet and tapped holes.
B5型—機座無底腳、端蓋有大凸緣，安裝孔為通孔.
B5 Type — Frame without foot and flange with big rabbet and through holes.

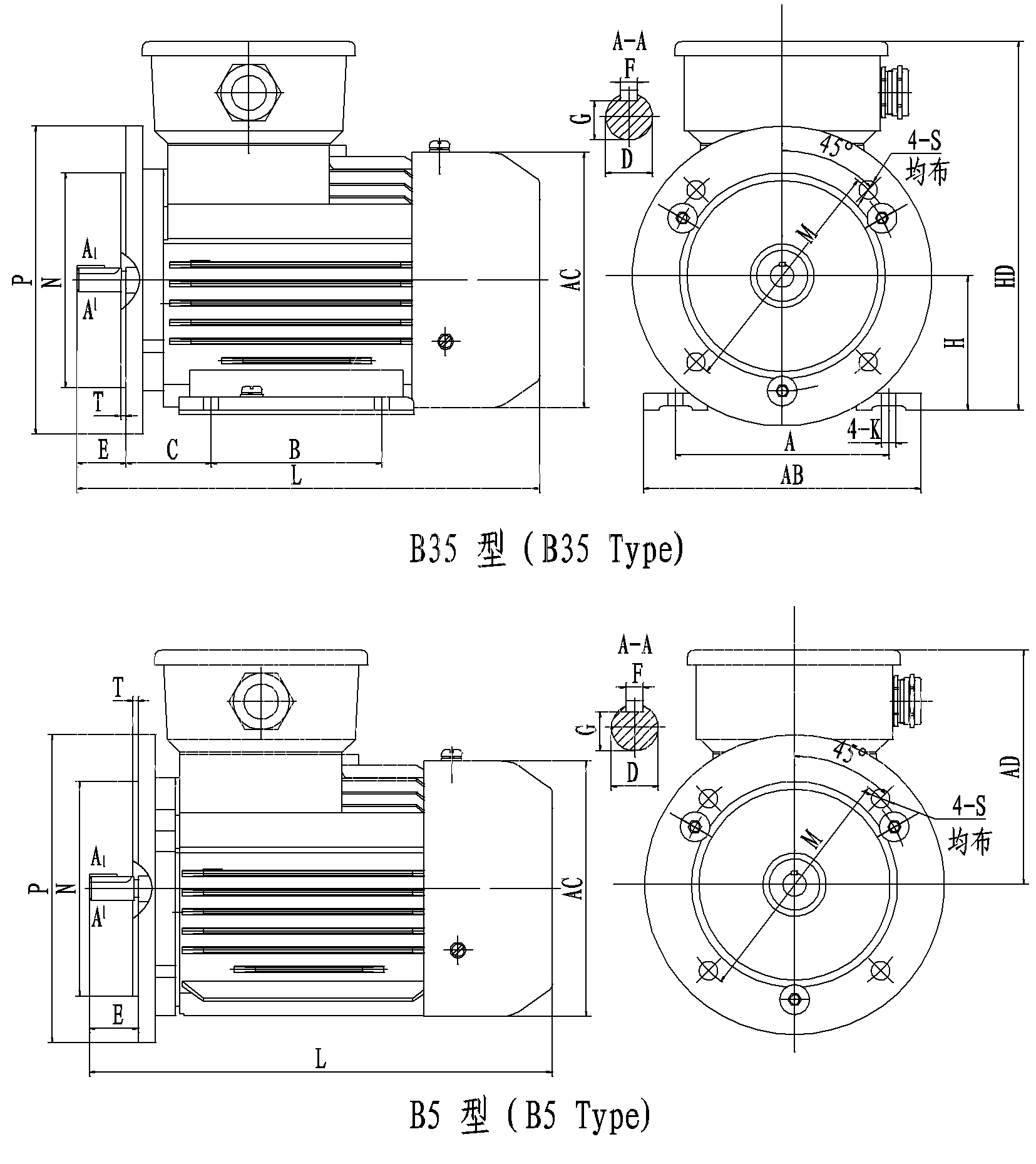

外形及安裝尺寸
(Mounting and Overall Dimensions)
機座號
Frame Size
|
外形及安裝尺寸
Mounting and Overall Dimension
|
|
B3、B34
|
B14、B34
|
B3、B34
|
B14
|
L
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
S
|
T
|
AB
|
AC
|
HD
|
AD
|
|
50
|
80
|
63
|
32
|
9
|
20
|
3
|
7.2
|
50
|
6
|
55
|
40
|
70
|
M5
|
2.5
|
100
|
110
|
125
|
100
|
175
|
|
56
|
90
|
71
|
36
|
9
|
20
|
3
|
7.2
|
56
|
6
|
65
|
50
|
80
|
115
|
120
|
135
|
110
|
190
|
|
63
|
100
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
7
|
75
|
60
|
90
|
130
|
130
|
165
|
125
|
250
|
|
71
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
7
|
85
|
70
|
105
|
M6
|
145
|
145
|
180
|
140
|
275
|
|
80
|
125
|
100
|
50
|
19
|
40
|
6
|
16
|
80
|
10
|
100
|
80
|
120
|
3
|
160
|
165
|
200
|
150
|
300
|
|
90S
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
115
|
95
|
140
|
M8
|
180
|
185
|
240
|
160
|
335
|
|
90L
|
140
|
125
|
56
|
24
|
50
|
90
|
115
|
95
|
140
|
180
|
185
|
240
|
160
|
365
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
130
|
110
|
160
|
3.5
|
205
|
215
|
290
|
185
|
385
|
|
112M
|
190
|
70
|
112
|
130
|
110
|
160
|
245
|
240
|
320
|
195
|
405
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
132
|
165
|
130
|
200
|
M10
|
280
|
275
|
365
|
245
|
500
|
|
132M
|
178
|
165
|
130
|
200
|
540
|
機座號
Frame Size
|
外形及安裝尺寸
Mounting and Overall Dimension
|
|
B35
|
B35、B5
|
B35
|
B5
|
L
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
S
|
T
|
AB
|
AC
|
HD
|
AD
|
|
63
|
100
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
7
|
115
|
95
|
140
|
10
|
3
|
130
|
130
|
165
|
125
|
250
|
|
71
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
130
|
110
|
160
|
4
|
145
|
145
|
180
|
140
|
275
|
|
80
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
165
|
130
|
200
|
12
|
160
|
165
|
200
|
150
|
300
|
|
90S
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
165
|
130
|
200
|
180
|
185
|
240
|
160
|
335
|
|
90L
|
140
|
125
|
56
|
24
|
50
|
20
|
90
|
165
|
130
|
200
|
180
|
185
|
240
|
160
|
365
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
215
|
180
|
250
|
15
|
4
|
205
|
215
|
290
|
185
|
385
|
|
112M
|
190
|
70
|
112
|
245
|
240
|
320
|
195
|
405
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
132
|
265
|
230
|
300
|
280
|
275
|
365
|
245
|
500
|
|
132M
|
178
|
540
|
注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。
Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
|
