JZ2-H系列船用起重用三相異步電動機（單速、雙速及三速）
JZ2-H Series Three phase Marine Asynchronous Motor For Hoisting (single speed,double speed and three speed)
產品概述 （Product Overview ）
JZ2-H 系列船用起重用電動機適用于船舶上驅動各種起重機械及冶輔助設備，具有較高的過載能力和機械強度。適用于短時間或斷續周期性工作制，頻繁起動，制動及有顯著振動及有沖擊的設備。如錨機、絞盤機及絞盤等，也可作操作不頻繁的起貨機的動力。該系列電機具有性能好、體積小、噪音低、工作可靠、維修方便等特點。
JZ2-H Series three phase marine asynchronous motor for hoisting is suitable for driving various hoisting and smelting auxiliary equipments on board ship,the motors has good ability of overload and mechanical strength.it dose apply to short time or intermittent period duty,it is also used for frequent starting, braking and working with equipment which has abvious vibration and shock. such as anchor windlass,winch,capstan and so on,it can also provide power for cargo winch that is no need to operate frequently.the motor has feature of good performance, small size,low noise,reliable working and easy manitenance etc.
工作環境條件(Operating Conditions)
海拔≤1000m
Altitude should be lower than 1000m above sea level
環境溫度： -25~+45℃
Ambient temperature -25~+45℃
空氣相對濕度 ≤95%
Relative humidity should be less than 95%.
傾斜: ±22.5°
Inclination ：±22.5°
搖擺: ±22.5°
Swing：±22.5°
有鹽霧、油霧、霉菌及海水的影響
Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.
有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響
Influenced by shock and vibration come from ships and offshore installation.
防護等級：IP56; 絕緣等級：F
Protection :IP56 ; Insulation :F
電壓/頻率：380V/50Hz、440V/60Hz
Voltage/Frequency: 380V/50Hz、440V/60Hz
型號說明(Type Designation)
技術數據(Technical Data)
型號
Frame Size
|
功率
Output
|
額定電流
Rated Current (A)
|
額定轉速
Rated Speed (r/min)
|
工作制
Duty
|
直流制動器
DC Brake
|
重量
weight (kg)
|
|
380V 50Hz
|
440V 60Hz
|
380V 50Hz
|
440V 60Hz
|
制動力矩 Brake Torque (N·m)
|
吸上電壓/吸上電流 Pull-in VOLT/Current(V/A)
|
維持電壓/維持電流 Holding VOLT/Current (V/A)
|
|
JZ2-11-4-H
|
1.5
|
4.3
|
3.7
|
1400
|
1680
|
S3-25%
|
24.8
|
128/1.19
|
128/1.19
|
66
|
|
JZ2-12-4-H
|
2.2
|
6
|
5.2
|
86
|
|
JZ2-13-4-H
|
3.5
|
8.9
|
7.7
|
77
|
|
JZ2-21-4-H
|
5
|
12
|
10.4
|
54.8
|
128/1.78
|
128/1.78
|
110
|
|
JZ2-21-6-H
|
3.5
|
10
|
8.7
|
900
|
1080
|
110
|
|
JZ2-22-6-H
|
5
|
13.3
|
11.5
|
122
|
|
JZ2-31-6-H
|
7.5
|
19.2
|
16.6
|
119.6
|
128/2.05
|
128/2.05
|
174
|
|
JZ2-32-6-H
|
11
|
26.8
|
23.2
|
195
|
|
JZ2-41-6-H
|
16
|
35
|
30.3
|
232.8
|
110/9
|
30/2.45
|
365
|
|
JZ2-41-8-H
|
11
|
28.9
|
25
|
695
|
830
|
340
|
|
JZ2-22-4/12-H
|
3/1.2
|
6.8/7.12
|
5.9/6.15
|
1350/410
|
1620/490
|
S2-30/10min
|
40
|
110/1.6
|
30/0.85
|
112
|
|
JZ2-23-4/12-H
|
4.3/1.7
|
9.5/10.1
|
8.2/8.73
|
149
|
|
JZ2-32-4/12-H
|
6/2.5
|
12.9/11.3
|
11.2/9.76
|
1350/390
|
1620/465
|
119.6
|
110/4.5
|
30/1.23
|
177
|
|
JZ2-33-4/12-H
|
8.5/3.5
|
17.9/14.8
|
15.5/12.8
|
1350/390
|
227
|
|
JZ2-33-4/16-H
|
8.5/2.4
|
19.2/11.6
|
16.6/10.1
|
1370/310
|
1620/370
|
S2-30/15min
|
230
|
|
JZ2-41-4/16-H
|
12/3.5
|
25/18.2
|
21.6/15.7
|
1370/320
|
1640/380
|
232.8
|
110/9
|
30/2.45
|
345
|
|
JZ2-42-4/16-H
|
18/5
|
37/23.8
|
32/20.6
|
407
|
|
JZ2-41-4/8/16-H
|
7.5/7.5/5
|
16.8/17.8/26
|
14.5/15.4/22.5
|
1400/665/300
|
1680/798/360
|
S2-10/30/5min
|
365
|
|
JZ2-42-4/8/16-H
|
11/11/7.5
|
23/25.5/36
|
19.9/22.1/31.1
|
415
|
|
JZ2-51-4/8/16-H
|
16/16/11
|
33/35.2/49
|
28.5/30.4/42.3
|
510.6
|
30/2.46
|
505
|
|
JZ2-52-4/8/16-H
|
22/22/16
|
43.7/47.8/71
|
37.8/41.3/61.3
|
575
|
|
JZ2-61-4/8/16-H
|
30/30/22
|
60.5/69.5/96
|
52.3/60.1/83
|
1420/670/300
|
1700/800/360
|
676
|
110/10.47
|
30/2.86
|
850
|
|
JZ2-71-4/8/16-H
|
45/45/30
|
88.5/100/142
|
76.5/86.4/122.7
|
1420/680/320
|
1700/810/380
|
889
|
110/18.25
|
30/4.98
|
1210
|
|
JZ2-72-4/8/16-H
|
60/60/45
|
114/135/195
|
98.5/116.6/168.5
|
1420/720/330
|
1700/860/390
|
1350
|
1560
|
|
JZ2-81-4/8/16-H
|
85/85/64
|
160/169/337
|
138.2/168.4/291
|
1450/720/355
|
1740/870/430
|
3000
|
110/4.1
|
110/4.1
|
2800
|
外形安裝尺寸（Mounting and Overall Dimension）
|
機座號 Frame Size
|
型號 Type
|
外形及安裝尺寸 Mounting and Overall Dimension
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
圓錐形軸伸 Conical Shaft Extension
|
H
|
K
|
AB
|
AD
|
HA
|
HD
|
L1
|
L2
|
|
D1
|
G1
|
E1
|
d1
|
|
JZ2-H 1#
|
JZ2-11、12-4-H
|
190
|
140
|
85
|
28
|
60
|
8
|
24
|
_
|
_
|
_
|
_
|
112
|
14
|
220
|
190
|
12
|
275
|
410
|
485
|
|
JZ2-13-4-H
|
170
|
440
|
515
|
|
JZ2-H 2#
|
JZ2-21-4、6-H
|
220
|
150
|
90
|
32
|
80
|
10
|
27
|
125
|
260
|
230
|
15
|
295
|
410
|
530
|
|
JZ2-22-6、4/12-H
|
200
|
460
|
590
|
|
JZ2-23-4/12-H
|
270
|
530
|
660
|
|
JZ2-H 3#
|
JZ2-31-6-H
|
250
|
200
|
100
|
42
|
110
|
12
|
37
|
150
|
18
|
300
|
235
|
20
|
345
|
560
|
650
|
|
JZ2-32-6、4/12-H
|
280
|
640
|
730
|
|
JZ2-33-4/12、4/16-H
|
380
|
740
|
830
|
|
JZ2-H 4#
|
JZ2-41-6、8、4/16、4/8/16-H
|
320
|
305
|
120
|
50
|
16
|
43.5
|
200
|
26
|
380
|
295
|
470
|
700
|
820
|
|
JZ2-42-4/16、4/8/16-H
|
380
|
770
|
895
|
|
JZ2-H 5#
|
JZ2-51-4/8/16-H
|
360
|
360
|
140
|
60
|
140
|
18
|
52.9
|
225
|
430
|
325
|
510
|
840
|
990
|
|
JZ2-52-4/8/16-H
|
460
|
940
|
1090
|
|
JZ2-H 6#
|
JZ2-61-4/8/16-H
|
420
|
440
|
160
|
70
|
20
|
62.5
|
M48×2
|
26
|
105
|
90
|
250
|
32
|
510
|
380
|
23
|
575
|
950
|
1130
|
|
JZ2-H 7#
|
JZ2-71-4/8/16-H
|
480
|
510
|
190
|
90
|
170
|
25
|
81
|
M60×3
|
35
|
130
|
110
|
280
|
560
|
410
|
600
|
1060
|
1255
|
|
JZ2-72-4/8/16-H
|
660
|
1200
|
1535
|
|
JZ2-H 8#
|
JZ2-81-4/8/16-H
|
508
|
508
|
216
|
–
|
–
|
–
|
–
|
315
|
30
|
628
|
485
|
20
|
750
|
1150
|
1380
|
|

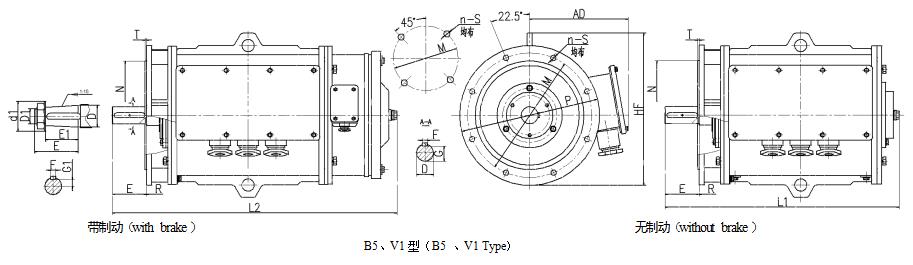

機座號 Frame Size
|
型號 Type
|
外形及安裝尺寸 Mounting and Overall Dimension
|
|
D
|
E
|
F
|
G
|
圓錐形軸伸 Conical Shaft Extension
|
M
|
N
|
P
|
R
|
S
|
n
|
T
|
AD
|
HF
|
L1
|
L2
|
|
D1
|
G1
|
E1
|
d1
|
|
JZ2-H 1#
|
JZ2-11、12-4-H
|
28
|
60
|
8
|
24
|
_
|
_
|
_
|
_
|
265
|
230
|
300
|
0±2
|
15
|
4
|
4
|
190
|
340
|
410
|
485
|
|
JZ2-13-4-H
|
440
|
515
|
|
JZ2-H 2#
|
JZ2-21-4、6-H
|
32
|
80
|
10
|
27
|
230
|
345
|
410
|
530
|
|
JZ2-22-6、4/12-H
|
460
|
590
|
|
JZ2-23-4/12-H
|
530
|
660
|
|
JZ2-H 3#
|
JZ2-31-6-H
|
42
|
110
|
12
|
37
|
300
|
250
|
350
|
0±3
|
19
|
5
|
235
|
410
|
560
|
650
|
|
JZ2-32-6、4/12-H
|
640
|
730
|
|
JZ2-33-4/12、4/16-H
|
740
|
830
|
|
JZ2-H 4#
|
JZ2-41-6、8、4/16、4/8/16-H
|
50
|
16
|
43.5
|
400
|
350
|
450
|
0±4
|
8
|
360
|
730
|
700
|
820
|
|
JZ2-42-4/16、4/8/16-H
|
770
|
895
|
|
JZ2-H 5#
|
JZ2-51-4/8/16-H
|
60
|
140
|
18
|
52.9
|
500
|
450
|
550
|
370
|
780
|
840
|
990
|
|
JZ2-52-4/8/16-H
|
940
|
1090
|
|
JZ2-H 6#
|
JZ2-61-4/8/16-H
|
70
|
20
|
62.5
|
M48×2
|
26
|
105
|
90
|
430
|
850
|
950
|
1130
|
|
JZ2-H 7#
|
JZ2-71-4/8/16-H
|
90
|
170
|
25
|
81
|
M60×3
|
35
|
130
|
110
|
600
|
550
|
660
|
24
|
6
|
480
|
980
|
1090
|
1530
|
|
JZ2-72-4/8/16-H
|
注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。
Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
|
