YVP-H系列船用變頻調速三相異步電動機（機座號80～355）
YVP-H Series Three phase Marine Asynchronous Motor of Variable Frquency Speed Contorl (Frame Size80~315)
產品概述 （Product Overview ）
YVP-H 系列電動機是一種交流、高效、節能變頻調速船用電動機，與變頻器配合使用，是機電一體化的調速新產品。功率等級和安裝尺寸完全符合國際電工委員會（IEC）標準，適用于船舶上作驅動各種機械，如泵類、通風機、分離器、液壓機械及其它輔助設備等之用。該電機具有如下優點：
1. 效率高，節能效果明顯；
2. 調頻范圍下，能在5Hz~100Hz甚至更廣的范圍內平滑無極調速；
3. 噪聲低、振動??；
4. 起動轉矩大、起動電流小，無須附加起動設備，低頻起動對負載沖擊小；
5. 結構簡單，運行穩定，使用可靠，維護方便；
6. 單獨裝有強迫冷卻風機，在不同的轉速下均有較好的冷卻效果；
7.應用范圍廣，可以在基頻（50Hz）以下作恒轉矩、基頻（50Hz）以上作恒功率運行，基本可以取代任何一種調速產品。
YVP-H series is high efficiency,energy-saving,variable frequency speed contorl of AC marine motors. it is a new mechatronics products of speed contorl. the output and mounting dimension are designed accord with IEC standard. the motors are used to drive various motor on ships, such as pump,ventilator,seperator, hydraulic engines and other auxiliary equipment. motor's feature is as followed:
1. high efficiency,energy-saving;
2. smooth and stepless speed could be contolled during 5Hz~100Hz even more than that;
3. low noise、small vibration;
4. high starting torque,low starting current, without additional starter,small impact on load during starting with low frequency.
5. simple construction,stable working, reliable operation, easy maintenance;
6. there is seperated forced cooling fan, so as to get good cooling effect no matter what speed.
7. wide range of application, motor could output constant torque below rated frequency(50Hz) and output constant power above rated frquency(50Hz).It can be say that the motor could displace a majority of speed contorl products.
工作環境條件(Operating Conditions)
海拔≤1000m
Altitude should be lower than 1000m above sea level
環境溫度： 0~+45℃
Ambient temperature 0~+45℃
空氣相對濕度 ≤95%
Relative humidity should be less than 95%.
傾斜: ±30°
Inclination ：±30°
搖擺: ±22.5°
Swing：±22.5°
有鹽霧、油霧、霉菌及海水的影響
Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.
有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響
Influenced by shock and vibration come from ships and offshore installation.
防護等級：IP54; 絕緣等級：F
Protection :IP54 ; Insulation :F
電壓/頻率：380V/50Hz
Voltage/Frequency: 380V/50Hz
調頻范圍(Range of frequency)：
機座號(frame size)：80~225：恒轉矩(constant torque)：5~50Hz；恒功率(constant power)：50~100Hz；
機座號(frame size)：250~355：恒轉矩(constant torque)：3~50Hz；恒功率(constant power)：50~100Hz；

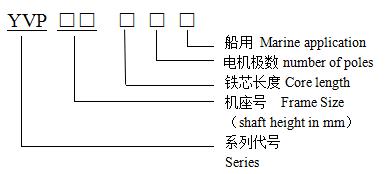

型號說明(Type Designation)
軸 承（Bearing）
|
機座號 Frame Size
|
極數 No. of poles
|
軸承 Bearings
|
|
主軸伸端 Driving end
|
非軸伸端
|
|
B3、B5、B35
|
V1
|
Non-Driving end
|
|
80
|
2，4
|
6204-2RS/C3
|
6204-2RS/C3
|
|
90
|
2，4，6
|
6205-2RS/C3
|
6205-2RS/C3
|
|
100
|
2，4，6
|
6206-2RS/C3
|
6206-2RS/C3
|
|
112
|
2，4，6，8
|
6206-2RS/C3
|
6206-2RS/C3
|
|
132
|
2，4，6，8
|
6208-2RS/C3
|
6208-2RS/C3
|
|
160
|
2，4，6，8
|
6309-2RS/C3
|
6309-2RS/C3
|
|
180
|
2，4，6，8
|
6311/C3
|
6311/C3
|
|
200
|
2，4，6，8
|
6312/C3
|
6312/C3
|
|
225
|
2 / 4，6，8
|
6312/C3/6313/C3
|
6312/C3
|
|
250
|
2 / 4，6，8
|
6313/C3/6314/C3
|
6313/C3
|
|
280
|
2/4，6，8
|
6314/C3/6317/C3
|
6314C3
|
|
315
|
2/4，6，8
|
6317/C3/N319/Z2
|
7317ACJ/7319ACJ
|
6317/C3/6319/Z2
|
|
355
|
2/4，6，8
|
6319/C3/N322/Z2
|
7319ACJ/7322ACJ
|
6319/C3/6322/Z2
|
技術數據(Technical Data)
型號
Type
|
標稱功率
Nominal output (kW)
|
標稱電流
Nominal current （A）
|
額定轉速
Rated speed （r/min）
|
額定轉矩
Rated Torque （N·m）
|
zui大轉矩
額定轉矩
Maximum torque vs Rated torque
|
恒轉矩變頻范圍
Frequency range of constant torque
|
恒功率變頻范圍
Frqeuency range of constant power
|
|
YVP80M1-4-H
|
0.55
|
1.5
|
1390
|
3.5
|
2.3
|
5～50
|
50～100
|
|
YVP80M2-4-H
|
0.75
|
2.1
|
1390
|
4.7
|
|
YVP90S-4-H
|
1.1
|
2.7
|
1400
|
7
|
|
YVP90L-4-H
|
1.5
|
3.6
|
1400
|
9.5
|
|
YVP100L1-4-H
|
2.2
|
5
|
1420
|
14
|
|
YVP100L2-4-H
|
3
|
6.8
|
1420
|
19
|
|
YVP112M-4-H
|
4
|
8.9
|
1440
|
25.4
|
|
YVP132S-4-H
|
5.5
|
11.7
|
1440
|
35
|
|
YVP132M-4-H
|
7.5
|
15.4
|
1440
|
47.7
|
|
YVP160M-4-H
|
11
|
22.6
|
1460
|
70
|
|
YVP160L-4-H
|
15
|
30.5
|
1460
|
95.5
|
|
YVP180M-4-H
|
18.5
|
35.9
|
1470
|
117.1
|
|
YVP180L-4-H
|
22
|
42.2
|
1470
|
140.9
|
|
YVP200L-4-H
|
30
|
57.3
|
1476
|
190.9
|
|
YVP225S-4-H
|
37
|
70.2
|
1481
|
235.5
|
|
YVP225M-4-H
|
45
|
84
|
1480
|
286.4
|
|
YVP250M-4-H
|
55
|
104
|
1480
|
350.1
|
3～50
|
|
YVP280S-4-H
|
75
|
139
|
1480
|
477.7
|
|
YVP280M-4-H
|
90
|
164
|
1480
|
572.9
|
|
YVP315S-4-H
|
110
|
201
|
1480
|
700.2
|
2.2
|
|
YVP315M-4-H
|
132
|
240
|
1480
|
840.3
|
|
YVP315L1-4-H
|
160
|
289
|
1480
|
1018
|
|
YVP315L2-4-H
|
200
|
361
|
1480
|
1273
|
|
YVP355M-4-H
|
250
|
465
|
1480
|
1592
|
|
YVP355L-4-H
|
315
|
582
|
1480
|
2005
|
型 號
Type
|
標稱功率
Nominal output (kW)
|
標稱電流
Nominal current （A）
|
額定轉速
Rated speed （r/min）
|
額定轉矩
Rated Torque （N·m）
|
zui大轉矩
額定轉矩 Maximum torque vs Rated torque
|
恒轉矩變頻范圍
Frequency range of constant torque
|
恒功率變頻范圍
Frqeuency range of constant power
|
|
YVP90S-6-H
|
0.75
|
2.2
|
910
|
7.2
|
2.1
|
5～50
|
50～100
|
|
YVP90L-6-H
|
1.1
|
3.2
|
910
|
10.5
|
|
YVP100L-6-H
|
1.5
|
4
|
940
|
14.3
|
|
YVP112M-6-H
|
2.2
|
5.8
|
940
|
21
|
|
YVP132S-6-H
|
3
|
7.2
|
960
|
28.7
|
|
YVP132M1-6-H
|
4
|
9.5
|
960
|
38.2
|
|
YVP132M2-6-H
|
5.5
|
12.5
|
960
|
52.5
|
|
YVP160M-6-H
|
7.5
|
17.1
|
970
|
71.6
|
|
YVP160L-6-H
|
11
|
25
|
970
|
105.1
|
|
YVP180L-6-H
|
15
|
33
|
970
|
143.2
|
|
YVP200L1-6-H
|
18.5
|
37.6
|
980
|
176.7
|
|
YVP200L2-6-H
|
22
|
44.7
|
980
|
210.1
|
|
YVP225M-6-H
|
30
|
61.1
|
985
|
286.5
|
|
YVP250M-6-H
|
37
|
71
|
980
|
353.4
|
3～50
|
|
YVP280S-6-H
|
45
|
86.4
|
980
|
429.8
|
2
|
|
YVP280M-6-H
|
55
|
103
|
980
|
525.3
|
|
YVP315S-6-H
|
75
|
141
|
980
|
716.3
|
|
YVP315M-6-H
|
90
|
169
|
980
|
859.5
|
|
YVP315L1-6-H
|
110
|
206
|
980
|
1051
|
|
YVP315L2-6-H
|
132
|
246
|
980
|
1261
|
|
YVP355M1-6-H
|
160
|
302
|
980
|
1528
|
|
YVP355M2-6-H
|
200
|
377
|
980
|
1910
|
|
YVP355L-6-H
|
250
|
469
|
980
|
2388
|
型號
Type
|
標稱功率
Nominal output (kW)
|
標稱電流
Nominal current （A）
|
額定轉速
Rated speed （r/min）
|
額定轉矩
Rated Torque （N·m）
|
zui大轉矩
額定轉矩 Maximum torque vs Rated torque
|
恒轉矩變頻范圍
Frequency range of constant torque
|
恒功率變頻范圍
Frqeuency range of constant power
|
|
YVP132S-8-H
|
2.2
|
5.8
|
710
|
28
|
2
|
5～50
|
50～100
|
|
YVP132M-8-H
|
3
|
7.6
|
710
|
38.2
|
|
YVP160M1-8-H
|
4
|
10.5
|
720
|
50.9
|
|
YVP160M2-8-H
|
5.5
|
13.4
|
720
|
70
|
|
YVP160L-8-H
|
7.5
|
17.7
|
720
|
95.5
|
|
YVP180L-8-H
|
11
|
25.6
|
730
|
140.1
|
|
YVP200L-8-H
|
15
|
33.3
|
729
|
191
|
|
YVP225S-8-H
|
18.5
|
40.3
|
735
|
235.6
|
|
YVP225M-8-H
|
22
|
47.4
|
734
|
278.1
|
|
YVP250M-8-H
|
30
|
64.7
|
730
|
382
|
3～50
|
|
YVP280S-8-H
|
37
|
79.8
|
740
|
471.1
|
|
YVP280M-8-H
|
45
|
94.8
|
740
|
573
|
|
YVP315S-8-H
|
55
|
113.5
|
740
|
700.3
|
|
YVP315M-8-H
|
75
|
152
|
740
|
955
|
|
YVP315L1-8-H
|
90
|
179
|
740
|
1146
|
|
YVP315L2-8-H
|
110
|
218
|
740
|
1400
|
|
YVP355M1-8-H
|
132
|
265
|
740
|
1681
|
|
YVP355M2-8-H
|
160
|
320
|
740
|
2037
|
|
YVP355L-8-H
|
200
|
399
|
740
|
2547
|

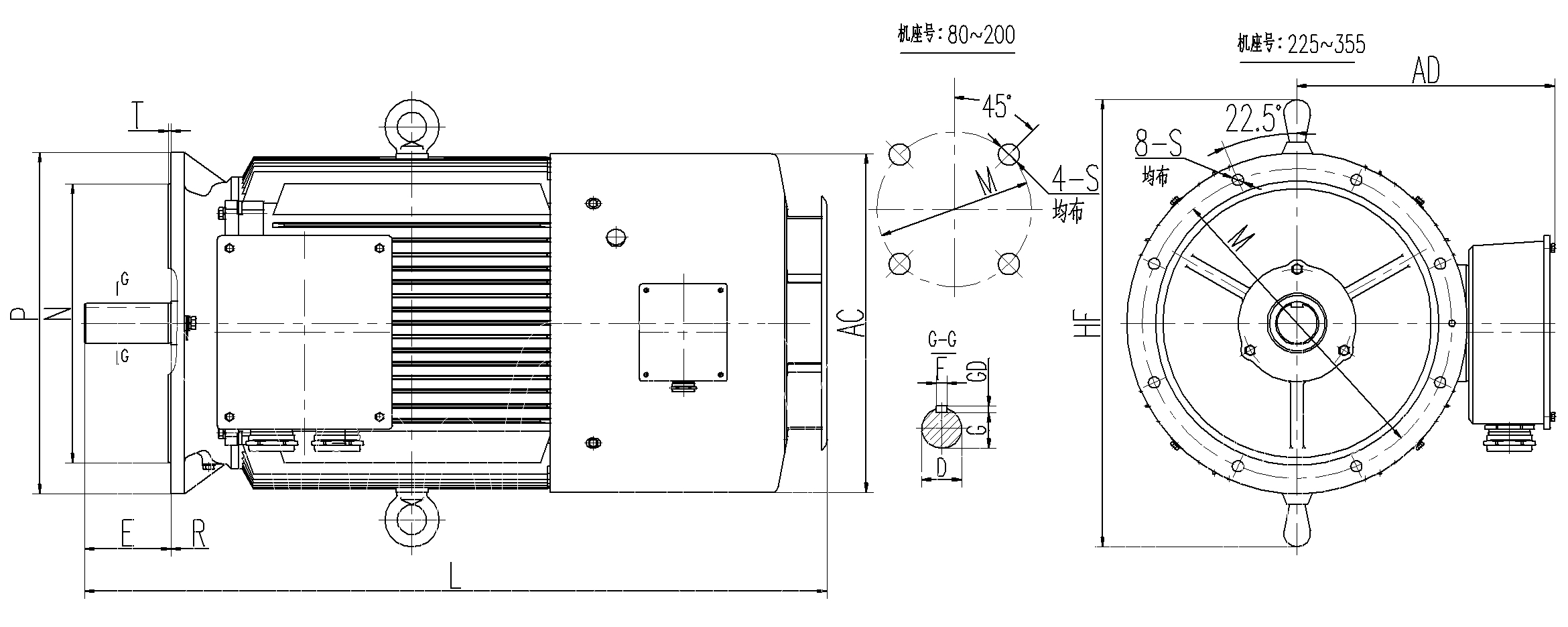

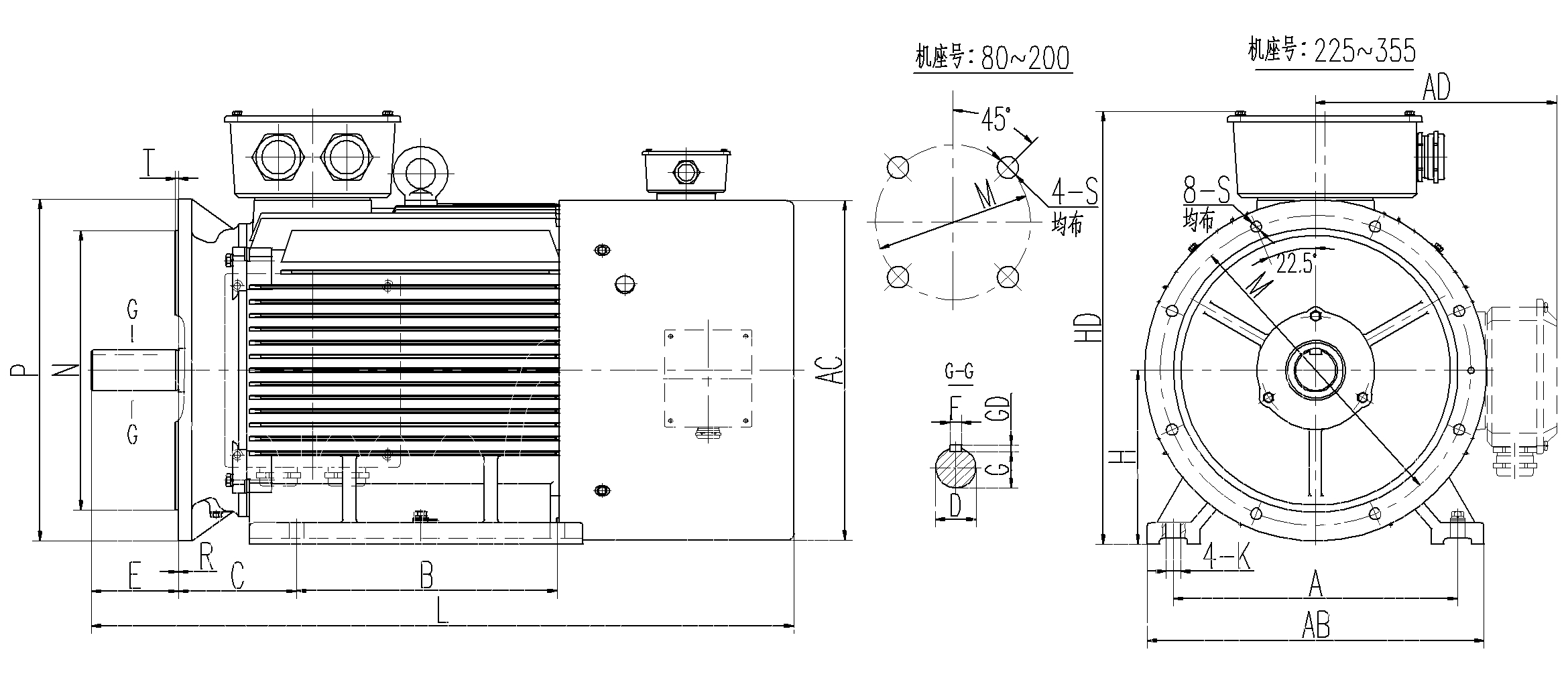

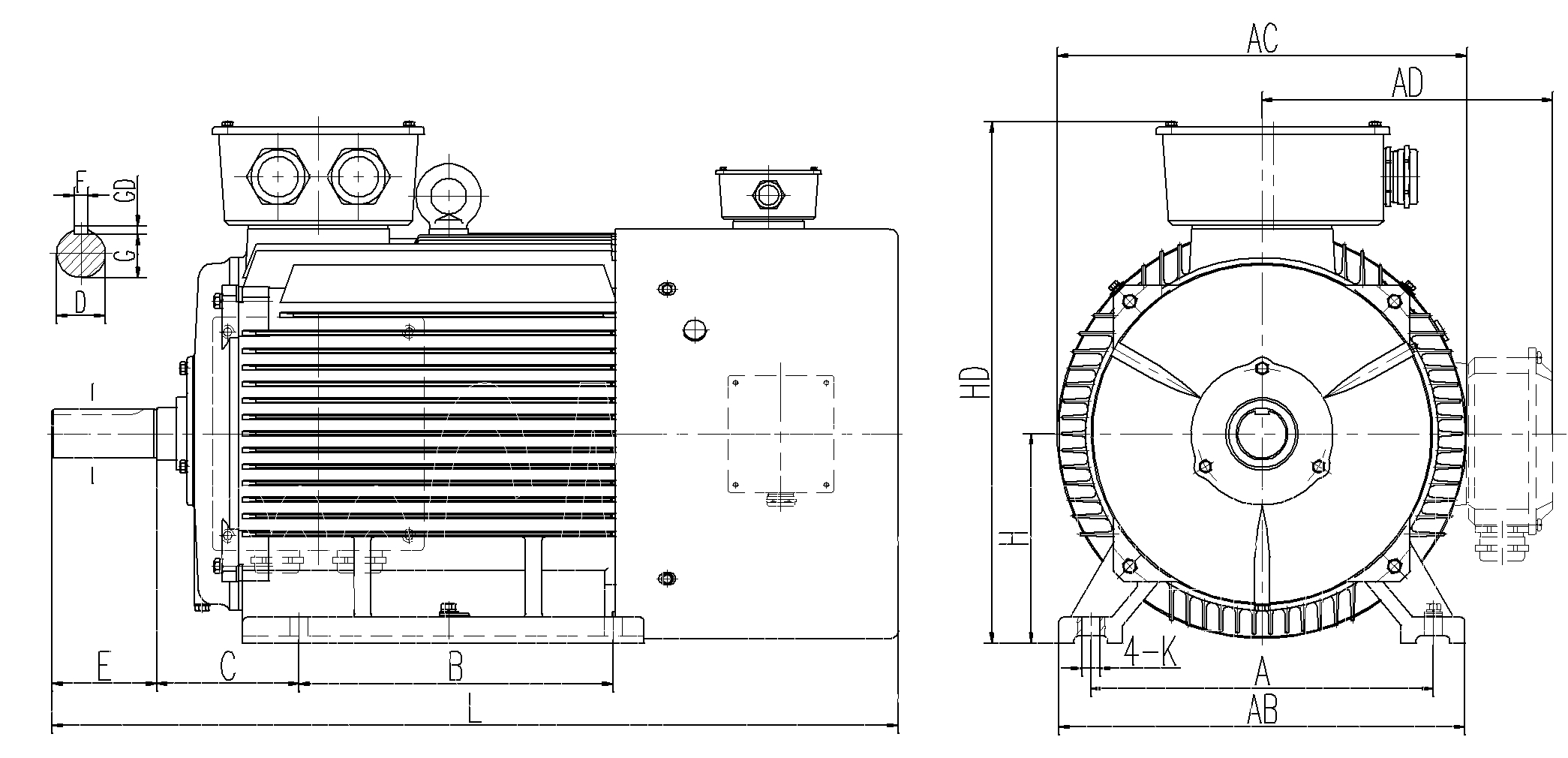

外形及安裝尺寸
(Mounting and Overall Dimensions)
機座號
Frame Size
|
安裝及外形尺寸
Mounting and overall dimensions
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
GD
|
H
|
K
|
AB
|
AC
|
AD
|
HD
|
L
|
|
80M
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
6
|
80
|
10
|
165
|
175
|
160
|
240
|
350
|
|
90S
|
140
|
56
|
24
|
50
|
8
|
20
|
7
|
90
|
180
|
195
|
175
|
270
|
400
|
|
90L
|
125
|
430
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
205
|
215
|
185
|
290
|
465
|
|
112M
|
190
|
70
|
112
|
245
|
240
|
195
|
320
|
490
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
8
|
132
|
280
|
275
|
245
|
365
|
430
|
|
132M
|
178
|
590
|
|
160M
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
330
|
330
|
270
|
440
|
660
|
|
160L
|
254
|
715
|
|
180M
|
279
|
241
|
121
|
48
|
14
|
42.5
|
9
|
180
|
355
|
380
|
290
|
475
|
810
|
|
180L
|
279
|
850
|
|
200L
|
318
|
305
|
133
|
55
|
16
|
49
|
10
|
200
|
19
|
395
|
420
|
355
|
525
|
890
|
|
225S
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
11
|
225
|
435
|
470
|
370
|
580
|
930
|
|
225M
|
311
|
970
|
|
250M
|
406
|
349
|
168
|
65
|
140
|
18
|
58
|
11
|
250
|
24
|
490
|
510
|
455
|
650
|
1050
|
|
280S
|
457
|
368
|
190
|
75
|
20
|
67.5
|
12
|
280
|
550
|
580
|
470
|
705
|
1100
|
|
280M
|
419
|
1160
|
|
315S
|
508
|
406
|
216
|
80
|
170
|
22
|
71
|
14
|
315
|
28
|
744
|
645
|
576
|
875
|
1330
|
|
315M
|
457
|
1470
|
|
315L
|
508
|
|
355M
|
610
|
560
|
254
|
95
|
25
|
86
|
14
|
355
|
28
|
740
|
750
|
680
|
1045
|
1750
|
|
355L
|
630
|
機座號
Frame size
|
安裝及外形尺寸
Mounting and overall dimensions
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
GD
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
HD
|
HD＇
|
L
|
|
80M
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
6
|
80
|
10
|
165
|
130
|
200
|
0±1.5
|
12
|
3.5
|
165
|
175
|
160
|
205
|
240
|
350
|
|
90S
|
140
|
56
|
24
|
50
|
8
|
20
|
7
|
90
|
180
|
195
|
175
|
225
|
270
|
400
|
|
90L
|
125
|
430
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
215
|
180
|
250
|
0±2.0
|
15
|
4
|
205
|
215
|
185
|
250
|
290
|
465
|
|
112M
|
190
|
70
|
112
|
245
|
240
|
195
|
270
|
320
|
490
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
8
|
132
|
265
|
230
|
300
|
280
|
275
|
245
|
320
|
365
|
530
|
|
132M
|
178
|
590
|
|
160M
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
0±3.0
|
19
|
5
|
330
|
330
|
270
|
385
|
440
|
660
|
|
160L
|
254
|
715
|
|
180M
|
279
|
241
|
121
|
48
|
14
|
42.5
|
9
|
180
|
355
|
380
|
290
|
425
|
475
|
810
|
|
180L
|
279
|
850
|
|
200L
|
318
|
305
|
133
|
55
|
16
|
49
|
10
|
200
|
19
|
350
|
300
|
400
|
395
|
420
|
355
|
475
|
525
|
890
|
|
225S
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
11
|
225
|
400
|
350
|
450
|
0±4.0
|
435
|
470
|
370
|
530
|
580
|
930
|
|
225M
|
311
|
970
|
|
250M
|
406
|
349
|
168
|
65
|
140
|
18
|
58
|
11
|
250
|
24
|
500
|
450
|
550
|
490
|
510
|
455
|
570
|
650
|
1050
|
|
280S
|
457
|
368
|
190
|
75
|
20
|
67.5
|
12
|
280
|
550
|
580
|
470
|
640
|
705
|
1100
|
|
280M
|
419
|
1160
|
|
315S
|
508
|
406
|
216
|
80
|
170
|
22
|
71
|
14
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
744
|
645
|
576
|
865
|
875
|
1330
|
|
315M
|
457
|
1450
|
|
315L
|
508
|
1450
|
|
355M
|
610
|
560
|
254
|
95
|
25
|
86
|
14
|
355
|
740
|
680
|
800
|
740
|
750
|
680
|
1035
|
1045
|
1750
|
|
355L
|
630
|
機座號
Frame Size
|
安裝及外形尺寸
Mounting and overall dimensions
|
|
D
|
E
|
F
|
G
|
GD
|
M
|
N
|
P
|
S
|
R
|
T
|
AC
|
AD
|
HF
|
L
|
|
80M
|
19
|
40
|
6
|
15.5
|
6
|
165
|
130
|
200
|
12
|
0±1.5
|
3.5
|
175
|
160
|
260
|
390
|
|
90S
|
24
|
50
|
8
|
20
|
7
|
195
|
175
|
270
|
445
|
|
90L
|
480
|
|
100L
|
28
|
60
|
24
|
215
|
180
|
250
|
15
|
0±2.0
|
4
|
215
|
185
|
300
|
510
|
|
112M
|
240
|
195
|
320
|
535
|
|
132S
|
38
|
80
|
10
|
33
|
8
|
265
|
230
|
300
|
275
|
245
|
380
|
580
|
|
132M
|
635
|
|
160M
|
42
|
110
|
12
|
37
|
300
|
250
|
350
|
19
|
0±3.0
|
5
|
330
|
270
|
450
|
715
|
|
160L
|
770
|
|
180M
|
48
|
14
|
42.5
|
9
|
380
|
290
|
490
|
870
|
|
180L
|
910
|
|
200L
|
55
|
16
|
49
|
10
|
350
|
300
|
400
|
420
|
355
|
550
|
950
|
|
225S
|
60
|
140
|
18
|
53
|
11
|
400
|
350
|
450
|
0±4.0
|
470
|
370
|
610
|
995
|
|
225M
|
1020
|
|
250M
|
65
|
140
|
18
|
58
|
11
|
500
|
450
|
550
|
510
|
455
|
645
|
1110
|
|
280S
|
75
|
20
|
67.5
|
12
|
580
|
470
|
720
|
1170
|
|
280M
|
1230
|
|
315S
|
80
|
170
|
22
|
71
|
14
|
600
|
550
|
660
|
24
|
6
|
645
|
576
|
900
|
1450
|
|
315M
|
1600
|
|
315L
|
1600
|
|
355M
|
95
|
25
|
86
|
14
|
740
|
680
|
800
|
750
|
680
|
1035
|
1800
|
|
355L
|
1800
|
機座號
Frame size
|
安裝及外形尺寸
Mounting and overall dimensions
|
|
D
|
E
|
F
|
G
|
GD
|
M
|
N
|
P
|
R
|
S
|
T
|
AC
|
AD
|
HF
|
L
|
|
80M
|
19
|
40
|
6
|
15.5
|
6
|
165
|
130
|
200
|
0±1.5
|
12
|
3.5
|
175
|
160
|
230
|
350
|
|
90S
|
24
|
50
|
8
|
20
|
7
|
195
|
175
|
235
|
400
|
|
90L
|
430
|
|
100L
|
28
|
60
|
24
|
215
|
180
|
250
|
0±2.0
|
15
|
4
|
215
|
185
|
275
|
465
|
|
112M
|
240
|
195
|
285
|
490
|
|
132S
|
38
|
80
|
10
|
33
|
8
|
265
|
230
|
300
|
275
|
245
|
340
|
530
|
|
132M
|
590
|
|
160M
|
42
|
110
|
12
|
37
|
300
|
250
|
350
|
0±3.0
|
19
|
5
|
330
|
270
|
400
|
660
|
|
160L
|
715
|
|
180M
|
48
|
14
|
42.5
|
9
|
380
|
290
|
435
|
810
|
|
180L
|
850
|
|
200L
|
55
|
16
|
49
|
10
|
350
|
300
|
400
|
420
|
355
|
480
|
890
|
|
225S
|
60
|
140
|
18
|
53
|
11
|
400
|
350
|
450
|
0±4.0
|
470
|
370
|
530
|
930
|
|
225M
|
970
|
注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。
Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
|
全國銷售與服務熱線
產品展示 / PRODUCTS
當前位置 > 主頁 >產品展示
俄文版
英文版
聯系我們
