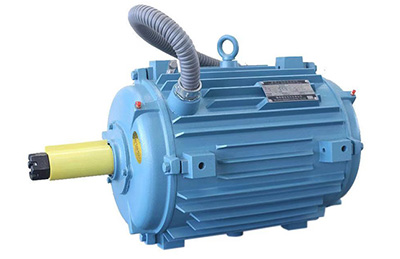

YT2-H系列船用軸流風機用三相異步電動機
YT2-H Series Three-phase Marine Asynchronous Motor For Axial Flow Fan
YT2-H系列船用軸流風機用三相異步電動機是為船舶通風機設計的專用電動機。除外形及安裝尺寸外，其他性能指標與Y-H系列電動機相同。YT2-H系列電動機為全封閉、鼠籠型電動機，具有高效、節能、起動轉矩大、性能好、噪聲低等優點。
YT2-H series motors are specially designed for marine axial flow fan. the only difference between YT2-H series motors and Y-H series motors is mounting and overall dimension. This series motors are totally-enclosed, squirrel-caged type. It has advantage of high efficiency、energy-saving、big starting torque、good performance、low noise and so on.
工作環境條件(Operating Conditions)
環境溫度(Ambient Temperature)：0～+45℃；
海 拔(Altitude)：0m；
額定頻率(Rated Frequency)：50Hz或60Hz；50 Hz or 60Hz ;
額定電壓(Rated Voltage)：380V或440V；380V or 440V;
接線方法(Connection)：3kW以下為Y，其他功率為△(3kW or Less Y、more than 3kW △)；
工作方式(Duty Type)：連續S1(Continuous)。
技術數據(Technical Data)
型號
Type
|
功率
Output kW
|
電流
Current A
|
轉速
Speed r/min
|
型號
Type
|
功率
Output kW
|
電流
Current A
|
轉速
Speed r/min
|
|
380V 50Hz
|
440V 60Hz
|
380V 50Hz
|
440V 60Hz
|
380V 50Hz
|
440V 60Hz
|
380V 50Hz
|
440V 60Hz
|
|
YT2-631-2-H
|
0.18
|
0.52
|
0.45
|
2720
|
3300
|
YT2-200L-4-H
|
30
|
57.3
|
49.8
|
1476
|
1779
|
|
YT2-632-2-H
|
0.25
|
0.69
|
0.6
|
2720
|
3300
|
YT2-225S-4-H
|
37
|
70.2
|
60.3
|
1480
|
1783
|
|
YT2-711-2-H
|
0.37
|
0.99
|
0.87
|
2760
|
3380
|
YT2-225M-4-H
|
45
|
84
|
73.4
|
1480
|
1783
|
|
YT2-712-2-H
|
0.55
|
1.38
|
1.2
|
2760
|
3380
|
YT2-250M-4-H
|
55
|
103.8
|
88.7
|
1480
|
1780
|
|
YT2-80M1-2-H
|
0.75
|
1.8
|
1.6
|
2820
|
3460
|
YT2-280S-4-H
|
75
|
139.2
|
120
|
1480
|
1790
|
|
YT2-80M2-2-H
|
1.1
|
2.6
|
2.2
|
2820
|
3460
|
YT2-280M-4-H
|
90
|
164.3
|
141.9
|
1480
|
1790
|
|
YT2-90S-2-H
|
1.5
|
3.5
|
3.1
|
2840
|
3470
|
YT2-711-6-H
|
0.18
|
0.74
|
0.64
|
880
|
1090
|
|
YT2-90L-2-H
|
2.2
|
4.9
|
4.3
|
2840
|
3470
|
YT2-712-6-H
|
0.25
|
0.95
|
0.82
|
880
|
1090
|
|
YT2-100L-2-H
|
3
|
6.4
|
5.4
|
2880
|
3490
|
YT2-80M1-6-H
|
0.37
|
1.31
|
1.13
|
890
|
1110
|
|
YT2-112M-2-H
|
4
|
8.2
|
7.2
|
2890
|
3500
|
YT2-80M2-6-H
|
0.55
|
1.7
|
1.47
|
890
|
1110
|
|
YT2-132S1-2-H
|
5.5
|
11
|
9.6
|
2900
|
3520
|
YT2-90S-6-H
|
0.75
|
2.2
|
2
|
910
|
1130
|
|
YT2-132S2-2-H
|
7.5
|
14.6
|
12.9
|
2900
|
3520
|
YT2-90L-6-H
|
1.1
|
3.2
|
2.9
|
910
|
1130
|
|
YT2-160M1-2-H
|
11
|
21.6
|
18.7
|
2930
|
3540
|
YT2-100L-6-H
|
1.5
|
4
|
3.5
|
940
|
1150
|
|
YT2-160M2-2-H
|
15
|
28.9
|
25.1
|
2930
|
3540
|
YT2-112M-6-H
|
2.2
|
5.8
|
5.2
|
940
|
1150
|
|
YT2-160L-2-H
|
18.5
|
35.7
|
30.3
|
2930
|
3540
|
YT2-132S-6-H
|
3
|
7.2
|
6.4
|
960
|
1170
|
|
YT2-180M-2-H
|
22
|
42.2
|
36.9
|
2940
|
3550
|
YT2-132M1-6-H
|
4
|
9.5
|
8.2
|
960
|
1170
|
|
YT2-200L1-2-H
|
30
|
57.9
|
50.3
|
2955
|
3565
|
YT2-132M2-6-H
|
5.5
|
12.5
|
10.7
|
960
|
1170
|
|
YT2-200L2-2-H
|
37
|
69.4
|
60.3
|
2960
|
3565
|
YT2-160M-6-H
|
7.5
|
17.1
|
14.8
|
970
|
1170
|
|
YT2-225M-2-H
|
45
|
85.9
|
76.3
|
2969
|
3572
|
YT2-160L-6-H
|
11
|
25
|
21.7
|
970
|
1170
|
|
YT2-250M-2-H
|
55
|
103.2
|
91.7
|
2970
|
3570
|
YT2-180L-6-H
|
15
|
33
|
29.3
|
970
|
1180
|
|
YT2-280S-2-H
|
75
|
139.2
|
120.9
|
2970
|
3580
|
YT2-200L1-6-H
|
18.5
|
37.6
|
32.7
|
980
|
1183
|
|
YT2-280M-2-H
|
90
|
167.1
|
143.5
|
2970
|
3580
|
YT2-200L2-6-H
|
22
|
44.7
|
38.9
|
980
|
1182
|
|
YT2-631-4-H
|
0.12
|
0.44
|
0.38
|
1340
|
1650
|
YT2-225M-6-H
|
30
|
61.1
|
53.1
|
985
|
1187
|
|
YT2-632-4-H
|
0.18
|
0.62
|
0.54
|
1340
|
1650
|
YT2-250M-6-H
|
37
|
71.0
|
61.3
|
980
|
1180
|
|
YT2-711-4-H
|
0.25
|
0.78
|
0.67
|
1350
|
1660
|
YT2-280S-6-H
|
45
|
86.4
|
74.6
|
980
|
1190
|
|
YT2-712-4-H
|
0.37
|
1.12
|
0.97
|
1350
|
1660
|
YT2-280M-6-H
|
55
|
103.2
|
89.7
|
980
|
1190
|
|
YT2-801-4-H
|
0.55
|
1.5
|
1.4
|
1390
|
1710
|
YT2-132S-8-H
|
2.2
|
5.8
|
5.2
|
710
|
860
|
|
YT2-802-4-H
|
0.75
|
2.1
|
1.8
|
1390
|
1710
|
YT2-132M-8-H
|
3
|
7.6
|
6.8
|
710
|
860
|
|
YT2-90S-4-H
|
1.1
|
2.7
|
2.4
|
1400
|
1710
|
YT2-160M1-8-H
|
4
|
10.5
|
9.1
|
720
|
870
|
|
YT2-90L-4-H
|
1.5
|
3.6
|
3.2
|
1400
|
1710
|
YT2-160M2-8-H
|
5.5
|
13.4
|
11.5
|
720
|
870
|
|
YT2-100L1-4-H
|
2.2
|
5
|
4.5
|
1420
|
1730
|
YT2-160L-8-H
|
7.5
|
17.7
|
15.5
|
720
|
870
|
|
YT2-100L2-4-H
|
3
|
6.8
|
5.9
|
1420
|
1730
|
YT2-180L-8-H
|
11
|
25.6
|
22.2
|
730
|
880
|
|
YT2-112M-4-H
|
4
|
8.9
|
7.7
|
1440
|
1750
|
YT2-200L-8-H
|
15
|
33.3
|
29.2
|
729
|
882
|
|
YT2-132S-4-H
|
5.5
|
11.7
|
10
|
1440
|
1750
|
YT2-225S-8-H
|
18.5
|
40.3
|
35.6
|
735
|
886
|
|
YT2-132M-4-H
|
7.5
|
15.4
|
13.2
|
1440
|
1750
|
YT2-225M-8-H
|
22
|
47.4
|
41.7
|
734
|
886
|
|
YT2-160M-4-H
|
11
|
22.6
|
19.5
|
1460
|
1760
|
YT2-250M-8-H
|
30
|
64.7
|
57.1
|
730
|
890
|
|
YT2-160L-4-H
|
15
|
30.5
|
26.3
|
1460
|
1760
|
YT2-280S-8-H
|
37
|
79.8
|
68.9
|
740
|
890
|
|
YT2-180M-4-H
|
18.5
|
35.9
|
30.8
|
1470
|
1770
|
YT2-280M-8-H
|
45
|
94.8
|
80.8
|
740
|
890
|
|
YT2-180L-4-H
|
22
|
42.2
|
36.9
|
1470
|
1770
|
|
|
|
|
|
|

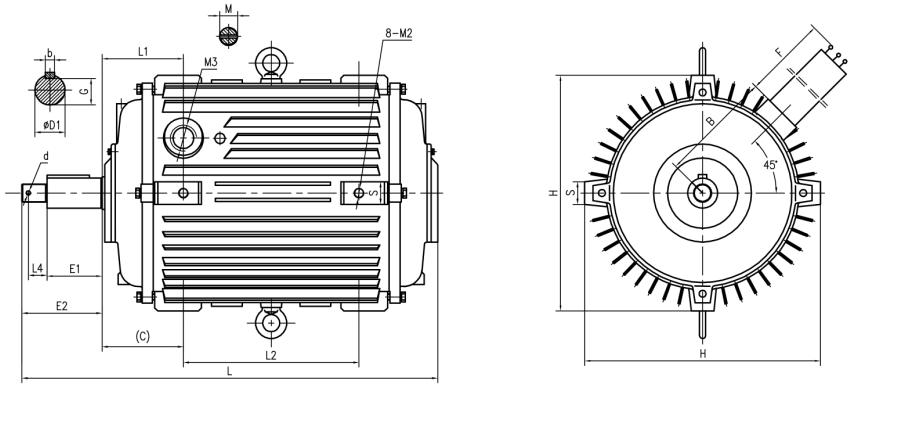

外形及安裝尺寸
(Mounting and Overall Dimensions)
尺寸
機座號
|
D1
|
b
|
G
|
E1
|
E2
|
L
|
C
|
L1
|
L2
|
F
|
L4
|
B
|
M
|
H
|
d
|
M3
|
8-M2
|
S
|
|
63
|
14
|
5
|
11
|
30
|
46
|
200
|
40
|
40
|
80
|
200
|
10
|
66
|
M8
|
140
|
2.7
|
G 3 4
|
M8深12
|
24
|
|
71
|
220
|
45
|
45
|
90
|
200
|
73
|
155
|
M8深14
|
24
|
|
80M
|
19
|
6
|
15.5
|
40
|
62
|
270
|
50
|
50
|
100
|
240
|
16
|
82
|
M12
|
175
|
3.2
|
M8深20
|
24
|
|
90S
|
24
|
8
|
20
|
50
|
78
|
295
|
56
|
56
|
100
|
240
|
20
|
90
|
M16
|
190
|
4.2
|
M10深20
|
28
|
|
90L
|
24
|
8
|
20
|
50
|
78
|
330
|
56
|
56
|
135
|
300
|
20
|
90
|
M16
|
190
|
4.2
|
M12深20
|
28
|
|
100L
|
28
|
8
|
24
|
60
|
92
|
365
|
55.5
|
55.5
|
155
|
340
|
24
|
102
|
M20
|
215
|
4.2
|
M12深20
|
32
|
|
112M
|
28
|
8
|
24
|
60
|
92
|
375
|
60
|
60
|
160
|
330
|
24
|
122
|
M20
|
255
|
4.2
|
M12深20
|
34
|
|
132S
|
38
|
10
|
33
|
80
|
119
|
450
|
68
|
68
|
182
|
400
|
31
|
140
|
M30
|
290
|
6.2
|
G1
|
M16深20
|
45
|
|
132M
|
38
|
10
|
33
|
80
|
119
|
490
|
68
|
68
|
220
|
450
|
31
|
140
|
M30
|
290
|
6.2
|
M16深20
|
45
|
|
160M
|
42
|
12
|
37
|
110
|
150
|
575
|
108
|
108
|
210
|
475
|
31
|
164
|
M30
|
340
|
6.2
|
M16深24
|
45
|
|
160L
|
42
|
12
|
37
|
110
|
150
|
620
|
108
|
108
|
254
|
630
|
31
|
164
|
M30
|
340
|
6.2
|
M16深24
|
45
|
|
180M
|
48
|
14
|
42.5
|
110
|
150
|
660
|
121
|
121
|
270
|
650
|
31
|
180
|
M30
|
380
|
6.2
|
M16深20
|
45
|
|
180L
|
48
|
14
|
42.5
|
110
|
150
|
700
|
121
|
121
|
310
|
650
|
31
|
180
|
M30
|
380
|
6.2
|
M16深20
|
45
|
|
200L
|
55
|
16
|
49
|
110
|
160
|
780
|
133
|
133
|
340
|
650
|
36
|
200
|
M36
|
420
|
6.2
|
G1 1 4
|
M16深20
|
40
|
|
225S
|
60
|
18
|
53
|
110
|
160
|
850
|
162
|
162
|
350
|
800
|
36
|
225
|
M36
|
470
|
6.2
|
M20深20
|
45
|
|
225M
|
60
|
18
|
53
|
110
|
160
|
850
|
162
|
162
|
350
|
800
|
36
|
225
|
M36
|
470
|
6.2
|
M20深20
|
45
|
|
250M
|
65
|
18
|
58
|
140
|
180
|
865
|
172.5
|
180
|
340
|
800
|
—
|
239
|
M42
|
476
|
—
|
G2 1 4
|
M16深24
|
50
|
|
280S
|
75
|
20
|
67.5
|
140
|
180
|
930
|
162
|
173
|
424
|
800
|
—
|
267
|
M52
|
540
|
—
|
M16深26
|
46
|
|
280M
|
75
|
20
|
67.5
|
140
|
180
|
980
|
162
|
173
|
475
|
800
|
—
|
267
|
M52
|
540
|
—
|
M16深26
|
46
|
注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。
Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
|
